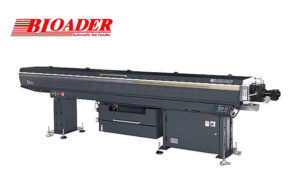

AUTO42 Automatic Hydraulic Bar Feeder (Magazined-Type)
BASIC SPECIFICATION |
||
|---|---|---|
|
||
Specification
| Model | Auto |
| Specifications | 2.5m ， 3.0m ， 3.6m，4.2m |
| Guide Channel | 21mm， 27mm，33mm，37mm，39mm，43mm |
| Bar Diameter | 5-20mm，5-26mm，5-32mm，5-36mm，5-38mm，5-42mm |
| Bar Capacity | 10mm/26 Pcs |
| Bar Length | 2700mm，3200mm，3800mm，4200mm |
| Machine Weight | 2.5m – 860kg ， 3.0m – 950kg ， 3.6m – 1060kg |
| Air Pressure | 6 Kgf / Cm² 70 Psi |
| Transmission | Servo Motor |
| Lubricant | Fk Iso Vg68/ Fk Hydraulic Oil68 |
| Capacity | 38l (10 Gallon) |
| Power Consumption | 810w |
| Power Supply | 3ø X 220v 50/60hz |
