| Model | BWG / EWG |
| Specifications | 2.5M / 3.0M / 3.6M |
| BWG PU Guide Channel | 11mm，14mm，17mm，19mm，21mm，23mm，25mm，27mm |
| BWG Bar Diameter | 3~10mm，3~13mm，3~16mm，3~18mm，5~20mm，5~22mm，5~24mm，5~26mm |
| EWG Steel Guide Channel | 11mm，13mm，17mm， 21mm，24mm，27mm |
| EWG Bar Diameter | 3~10mm，3~12mm，3~16mm，5~20mm，5~23mm， 5~26mm |
| Bar Capacity | 10mm(3/8”)X23pcs |
| Bar Length | 2.5M:2700mm，3.0M:3200mm，3.6M:3800mm |
| Machine Weight | 2.5M–450kg，3.0M–500 kg，3.6M–650 kg |
| Air Pressure | 6kgf/cm² 70psi |
| Transmission | SERVO MOTOR |
| Lubricant | FK ISO VG68，FK HYDRAULIC OIL 68 |
| Capacity | 38L(10 GALLON) |
| Power Consumption | 630W |
| Powre Supply | 3φx220V 50/60Hz |
Related products
-
Alpha 552
Read moreBASIC SPECIFICATION
The LNS Alpha 552 bar feeder ensures the maximum productivity for feeding bars with diameters of 5 to 52 mm. Therfore, it is especially suited to the production of medium and large batches on fixed or sliding headstocks. As a result, the Alpha 538 keeps you ahead of the competition at an affordable price.
-

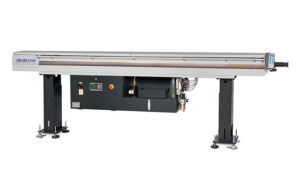

STG 20 Hydraulic Long Bar Feeder (Magazined-Type)
Read moreBASIC SPECIFICATION
- A self-adjustment of clamping device. (Patented)
- A bar loading time runs rapidly.
- Offers a quick changeover of guide channel sets.
- Features lubricant and remnants to work independently. (Patented)
- A servo motor feeding system offers speedy & accurate.
- Both left and right feeding is available for individual lathe application.
- A power metallurgy-made guide channel set is available to choose from. (Optional)
- A clamping device functions well to insert bar material stably.
- An external LED display features a bar material position while operating.
-

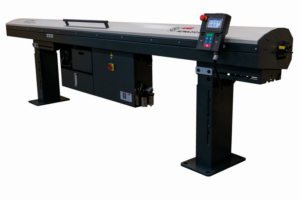

Alpha 212 S3
