| Diameter | ø 0.8 – 12 mm |
|---|---|
| Bar Length | 2200 mm / 3200 mm |
| Loading Capacity | Up to 30 bars |
| Headstock Type | Fixed / sliding |
| Max. Remnant Length | 230 mm |
| Partial Changeover | 2 minutes (within the guiding channel range) |
| Total Changeover | 6 minutes (for all guiding elements) |
BARLOAD, LNS
Express 112+
BASIC SPECIFICATION |
||
|---|---|---|
|
Innovative and efficient, the LNS Express 112+ bar feeder provides maximum productivity and sets a new standard offering the smallest footprint in its class. The bar feeder ensures perfect guiding of bars at the highest speeds, over the entire range of diameters thanks to the Hydrobar® technology. |
||
Related products
-

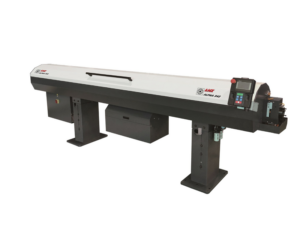

MINI Magazined-type Hydraulic Long Bar Feeder
Read moreBASIC SPECIFICATION
- No adjustment is required for material clamping(patented)
- Concealed and safe wiring
- A material change is quickly accomplished
- Torque and speed are adjustable to meet the requirement
- Oil and remnants are separately collected
-

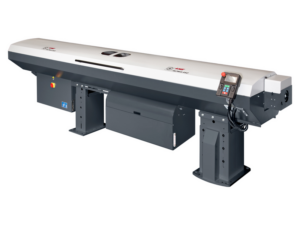

Alpha 212 S3
Read moreBASIC SPECIFICATION
The Alpha 212 S3 – the ideal entry-level bar feeder LNS Alpha 212 S3 bar feeder is the solution for loading small-diameter bars, from 2 to 12 mm. Its straightforward use, compactness and efficiency are crucial production assets for fixed or mobile headstock lathes. Pulling each bar into the barfeed’s screw loading system guarantees an accurate and reliable way to load the bars into the guiding zone. No setup of the magazine required, no risk of misloading.
-

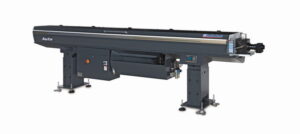

STG 20 Hydraulic Long Bar Feeder (Magazined-Type)
