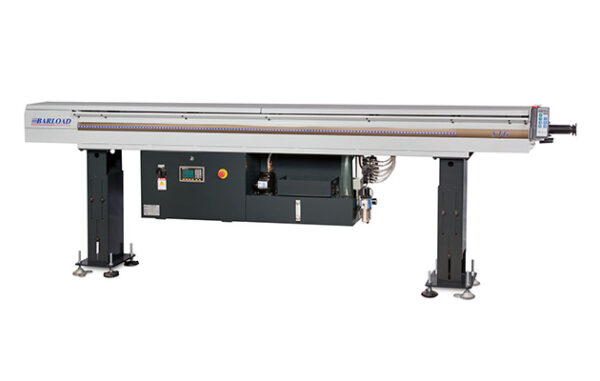

STG 20 Hydraulic Long Bar Feeder (Magazined-Type)

STG 20 Hydraulic Long Bar Feeder (Magazined-Type)

BASIC SPECIFICATION
  • A self-adjustment of clamping device. (Patented)
  • A bar loading time runs rapidly.
  • Offers a quick changeover of guide channel sets.
  • Features lubricant and remnants to work independently. (Patented)
  • A servo motor feeding system offers speedy & accurate.
  • Both left and right feeding is available for individual lathe application.
  • A power metallurgy-made guide channel set is available to choose from. (Optional)
  • A clamping device functions well to insert bar material stably.
  • An external LED display features a bar material position while operating.
Category:
Model STG
Specifications 2.5M,3.0M
Pu Guide Channel 11mm,14mm,17mm,19mm,21mm,23mm,25mm
Bar Diameter 3~10mm,3~13mm,3~16mm,4~18mm,5~20mm,5~22mm,5~23mm
Steel Guide Channel 11mm,13mm,17mm,21mm
Bar Diameter 3~10mm,3~12mm,3~16mm, 5~20mm
Bar Capacity 10mm(3/8”)X22pcs
Bar Length 2.5M:2700mm,3.0M:3200mm
Machine Weight 2.5M-270Kg,3.0M-320Kg
Air Pressure 6Kgf/ cm² 70psi
Transmission SERVO MOTOR
Lubricant FK ISO VG68,FK HYDRAULIC OIL 68
Capacity 30L(7.5 GALLON)
Power Consumption 630W
Powre Supply 3Φx220V/50/60Hz
